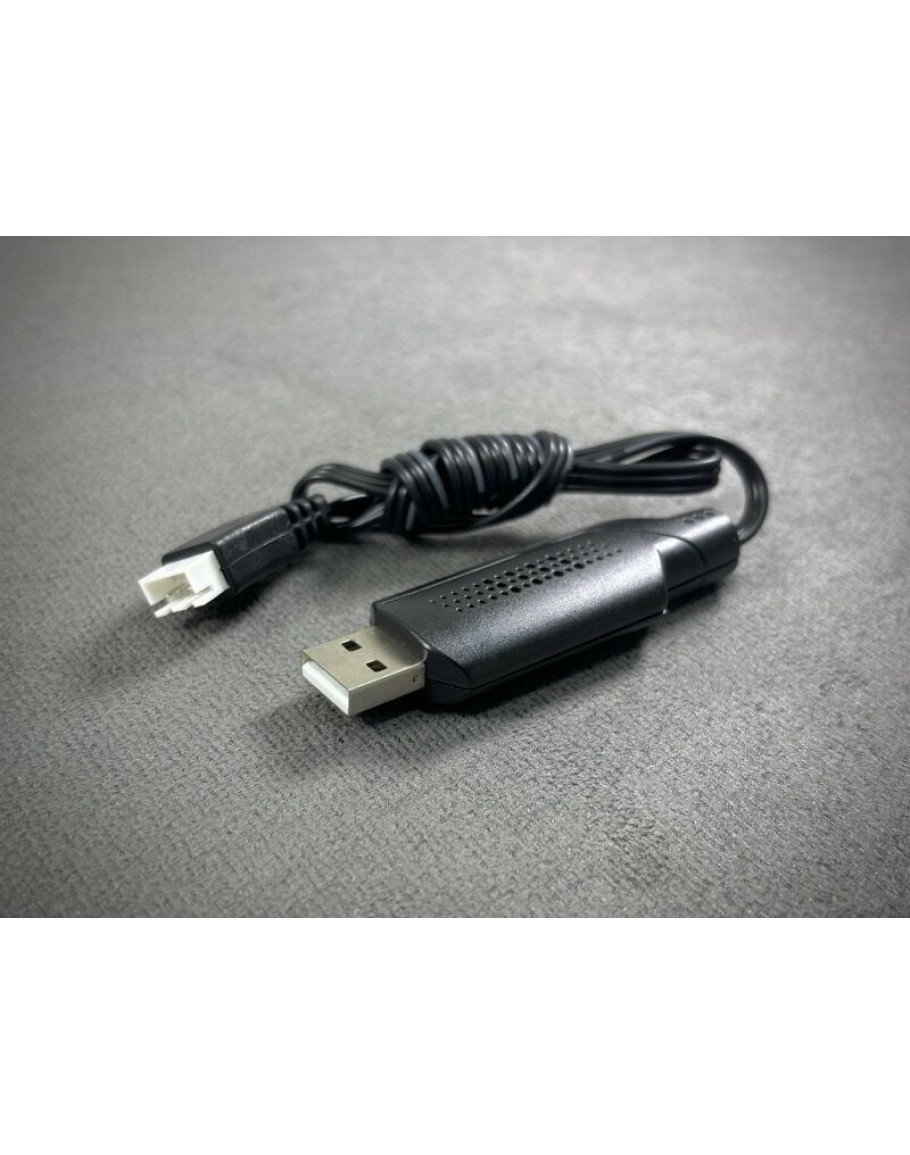

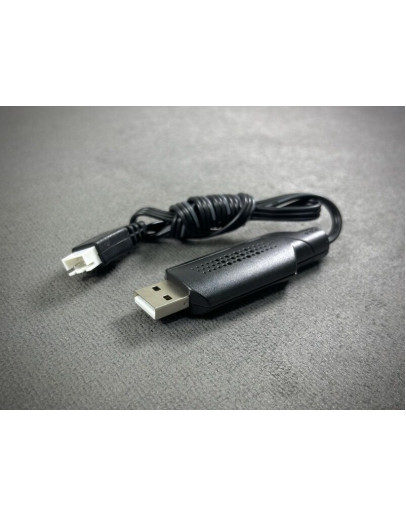

USB-A charging cable with T-plug suitable for 2S/7.4V LiPo batteries with a capacity of up to 5000mAh.
Technical data:
USB-A charging cable
Input: 100-240V
Max. Output Power: 8W/2A
Battery type: LiPo; Li-Ion 2S/7.4V
Battery capacity: up to 5000mAh
Protection mode: overvoltage; short circuit; reverse polarity
Plug: XH balancer plug
Cable length: approx. 50cm Dimensions
(L/W/H): 75x23x12 mm
Weight: 20 g
The USB charging cable has an LED indicator. During the charging
process, the green LED flashes and the red LED lights up constantly.
When the battery is fully charged, the green LED lights up continuously
and the red LED is off. If only the red LED lights up continuously,
there is a fault or a protective function of the charging cable is
active.
Scope of delivery:
1* USB-A charging cable for LiPo batteries (without power supply)
Please note:
The charging speed may vary depending on the power supply unit. To be
able to use the full power of the USB charging cable, you need a power
supply unit with at least 10W power (output voltage 2A/5V) which
supports fast charging. If you use a power supply unit with less power,
the charging time will be extended accordingly.
